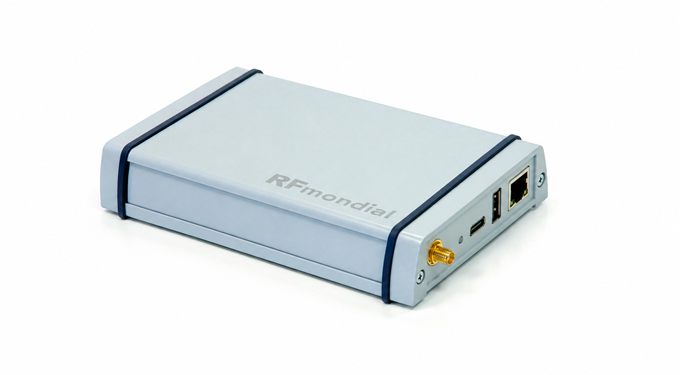

RTKDAB - GEPOS® DAB+ Receiver

RTKDAB is an integrated hardware and software solution for receiving PPP-RTK GNSS correction data via DAB+ broadcast networks. It enables standard RTK GNSS receivers to utilize the nationwide German GEPOS® correction service provided by the Federal Agency for Cartography and Geodesy (BKG), without requiring a mobile data connection or subscription-based correction service.

Applications

• High-precision GNSS positioning without cellular coverage
• Cost-free access to the nationwide GEPOS® correction service
• Railway Applications
• Construction and Machine Control
• Utility and Infrastructure Management
• Mobile GIS and Asset Mapping

Key Features

DAB

• Professional DAB+ receiver and service decoder
• Integrated RF filter optimized for DAB+ VHF Band III, Channel 5C

RTK

• Conversion of GEPOS® SSRZ into OSR for VRS/TK) applications using Geo++'s latest SSR2OBS technology
• Only NMEA GGA is required as input from rover
• RTCM 3 output via TCP/IP, serial interface, or local NTRIP caster
• Both OSR and SSRZ correction streams are available

Downloads

• Specification RTKDAB GEPOS DAB+ Receiver
