DRM Monitoring and Measurement Receiver RF-SE

RF-SE is a professional digital radio monitoring and measurement receiver, which is available in different models.
The outstanding reception characteristics are based on a high-performance frontend with digital direct-down conversion system approach. The field-proven digital baseband demodulator provides access to all needed measurement and monitoring parameter. Furthermore, various modular blocks like RSCI capability, audio and data decoder, alarm feature, browser-based GUI, RFmonitor connector are available to suite the specific needs of the desired application.

Applications

  • Transmitter, spectrum and coverage monitoring
  • Modulation quality and parameter measurements
  • RSCI long-term logging and analysis
  • Reference for receiver development
  • High accuracy field strength measurements
  • Content verification and logging
  • QoS (Quality of Service) monitoring
  • Mobile field trials and measurements
  • Image

    Key Features

    • Up to 4 RF & several MDI inputs in parallel
    • Field proven DRM demodulator
    • Additional demodulators possible (e.g. FM, AM, DAB)
    • Parallel full ensemble decoding
    • Complete MDI reconstruction from RF
    • Full ensemble MDI output to LAN
    • Simultaneous decoding of all audio and data services
    • Extensive RF measurements
    • MER > 45 dB
    • Rebroadcasting capability

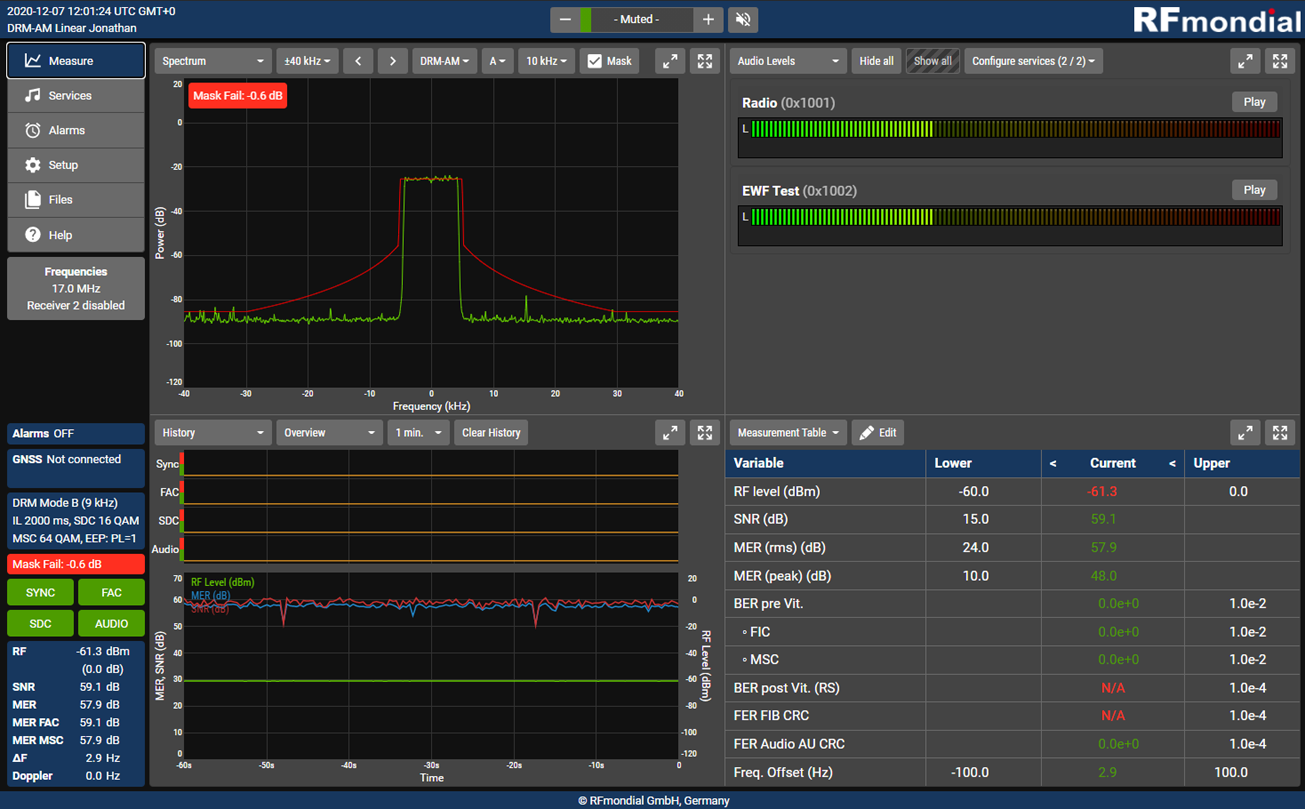

    • Browser-based HTML5 user interface with remote audio and data streaming
    • Available for virtual environments without hardware
